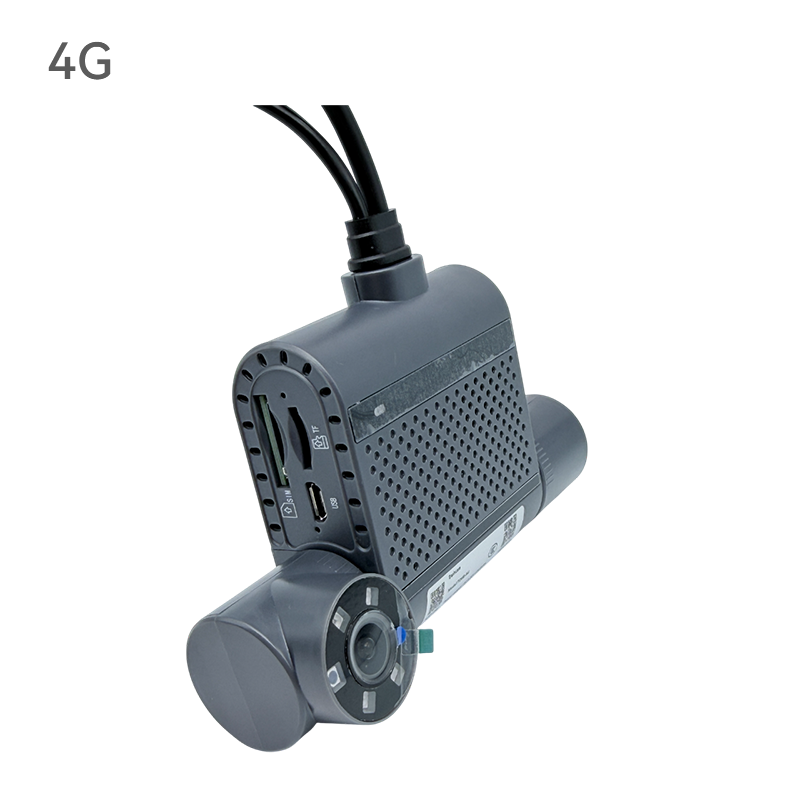

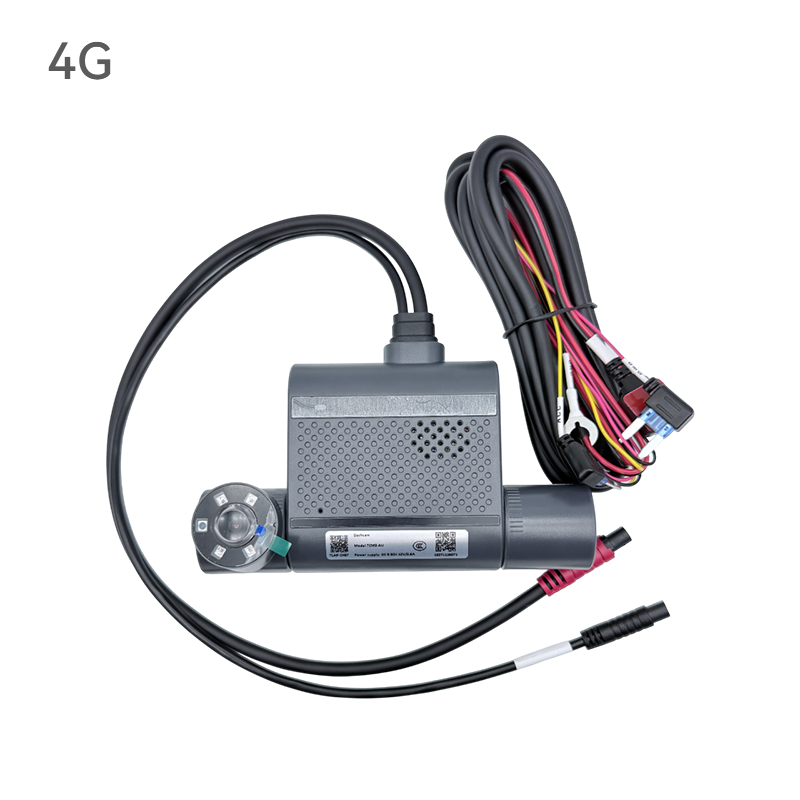

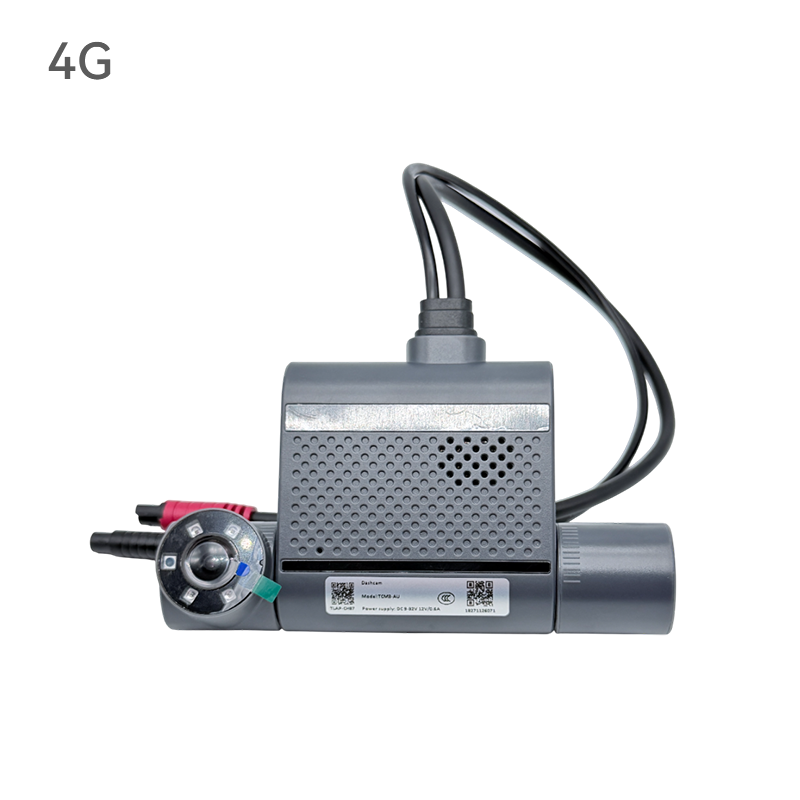

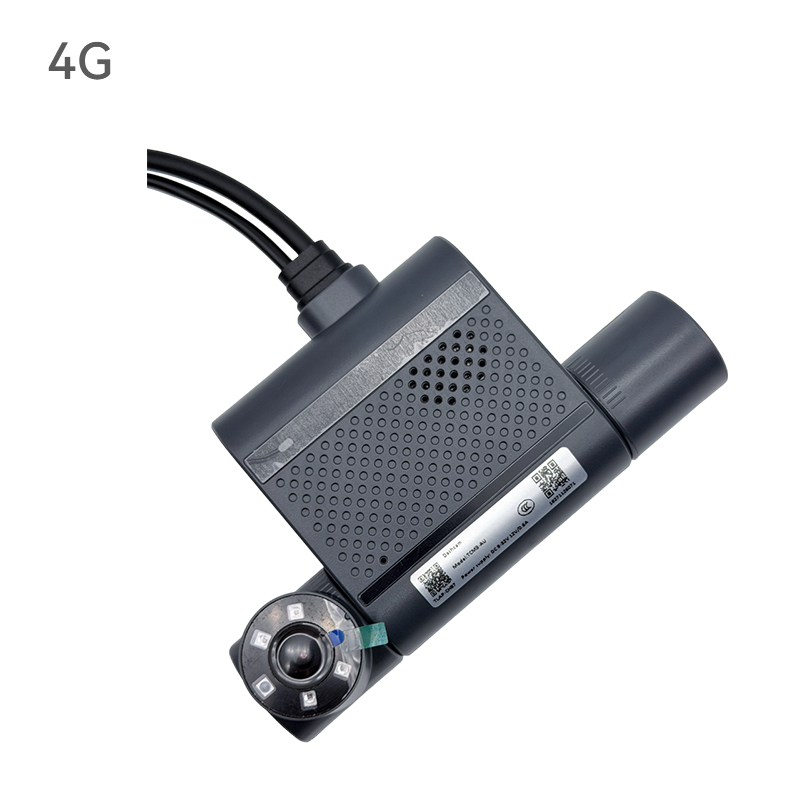

The Dash Cam TCM3 is a comprehensive fleet management solution designed to enhance vehicle safety and operational efficiency. Its core functions include real-time GPS location tracking, live video monitoring, and driver behavior oversight. The device features three camera channels, with one lens capable of recording in full 1080P HD clarity. Advanced safety is enabled through integrated ADAS (Advanced Driver Assistance System) and DSM (Driver State Monitoring), which provide real-time warnings for driver fatigue and unsafe driving habits. This combination makes the TCM3 an essential tool for modern fleet management, improving both security and productivity on the road.
Product Advantage
1. Multi-Channel Monitoring with Premium 1080P Front Recording
The TCM3 dashcam features a triple-camera system for comprehensive vehicle coverage. Its main front-facing lens records in full 1080P HD, capturing critical details with clarity. The auxiliary cameras monitor the cabin interior and rear view, providing a multi-angle safety net. This configuration delivers reliable evidence and supports real-time monitoring dashcam applications, enhancing both driver accountability and fleet security.
2. Advanced AI Safety Features: ADAS & DSM
Equipped with intelligent safety systems, the TCM3 includes ADAS for forward collision and lane departure warnings, and DSM to detect driver fatigue or distraction. These AI-driven functions provide real-time alerts to encourage safer driving behavior. This proactive safety layer makes it an ideal 4G GPS dashcam for fleets focused on reducing accidents and improving driver performance.
3. Real-Time Fleet Management via 4G & GPS Integration
With built-in 4G LTE and GPS, the TCM3 enables seamless live GPS tracking dashcam functionality. Fleet managers can monitor vehicle locations in real time and access live 1080P video streams through a unified platform. This supports efficient dispatch, incident response, and driver guidance—making it a robust GPS tracking device with fleet management platform.
4. Cross-Platform Accessibility & Event Protection
Compatible with both iOS and Android, the TCM3 offers easy access via a dedicated mobile app for live viewing and video playback. Its G-Sensor automatically saves footage of collisions or sudden events, ensuring critical evidence is preserved. Together with Wi-Fi for local data transfer, it serves as a reliable WiFi GPS dual dash cam with G-Sensor for everyday security and operational insight.
Technical Parameters
project | Equipment parameters | Performance index |
system | operating system | Embedded Linux operating system |
operating language | Chinese/English | |
Operating interface | Configuration through operation and maintenance treasure | |
Password security | User password management | |
audio and video | Compression standard | H.265/H.264 |
image resolution ratio | 1080P/720P/960H/D1/CIF | |
Video quality | Level 1 to 6 can be matched | |
audio compression | G.711A、G.711U、G.726 | |
Recording mode | Synchronous recording of sound and video | |
Video recording | Video recording mode | Automatic,alarm |
Audio code rate | 8Kb/s | |
Video inquiry | It can be searched by channel and video type | |
software upgrade | Upgrade mode | Manual/Automatic/Remote |
Upgrade method | U disk,TF card,wireless network | ||
joggle/interface | AV input | 2CH Built-in 1080P camera | |
gnition input | 1ACC signal | ||
One-button alarm | 1 road | ||
audio input | Built in MIC | ||
audio output | Built-in 2W speaker | ||

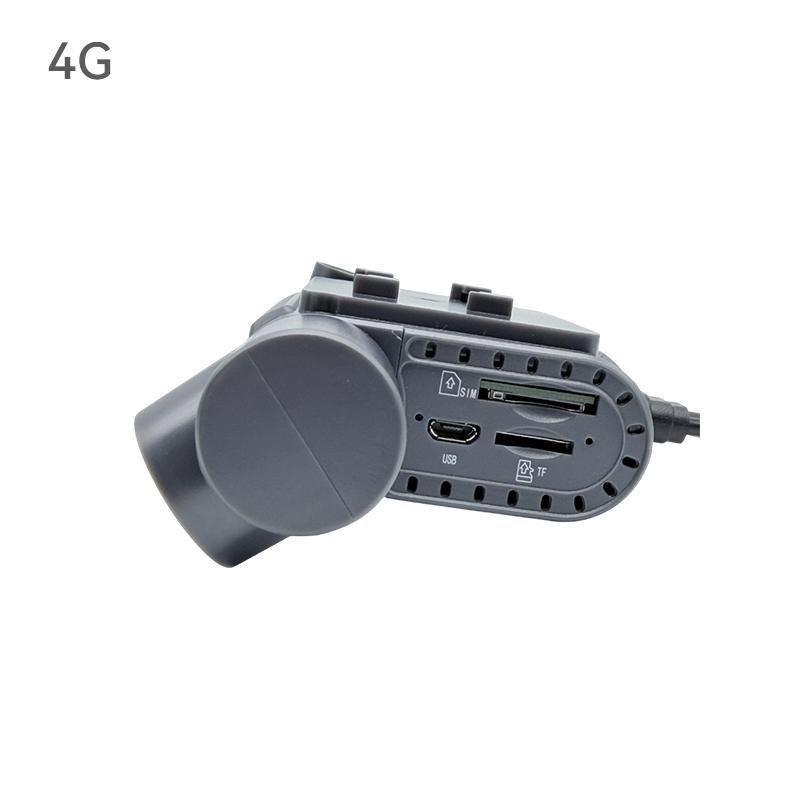

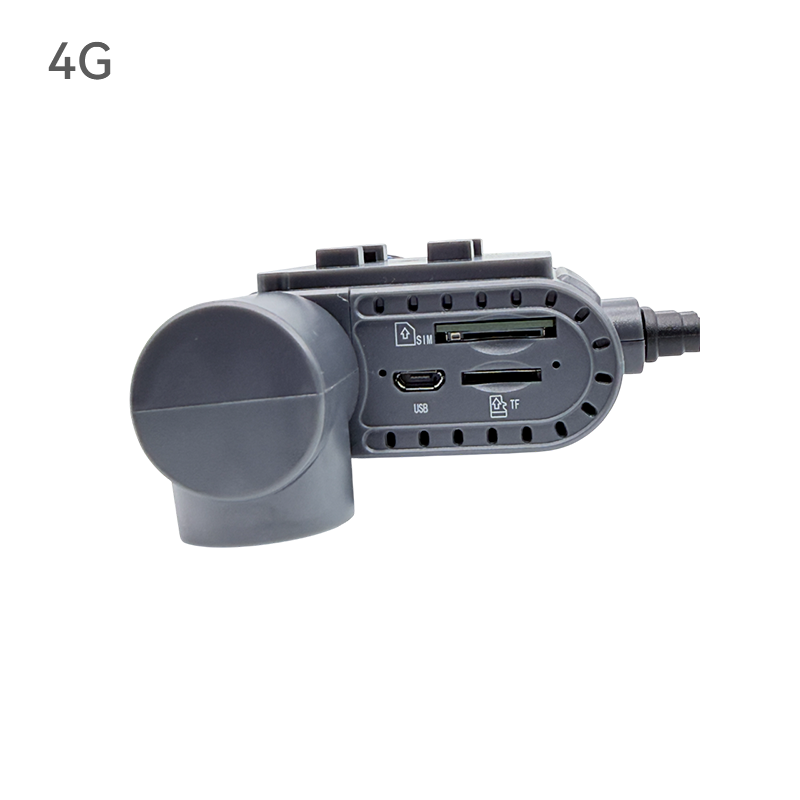

TF card | 1 TF card interface | ||
SIM interface | 1 MICRO SIM interface | ||
Usb interface | 1 MICRO USB interface | ||
light emitting diode | PWR/RUN two-color lamp | ||
extended | GNSS | Built-in ceramic antenna,GPS+BD+GLONASS | |
wireless | Support 4G full netcom | ||
WIFI | Frequency 2.4GHz | ||
other | Power input | DC:9V~32V | |
Typical power consumption | Less than 10W | ||
Working temperature | -20---70℃ | ||
storage capacity | 1080P 600MB/hour/channel H.265 | ||
measure | 125.6*86.6*46.9mm | ||
Product Uses
1.Commercial Fleet Operations
Ideal for logistics and delivery companies to monitor routes, driver behavior, and cargo safety in real time. The live GPS tracking and dual-camera system help optimize efficiency, reduce fuel costs, and ensure compliance with safety protocols.
2.Ride-Hailing and Taxi Services
Enhances passenger and driver security with continuous cabin and road recording. The DSM feature alerts drivers to fatigue or distraction.
3.Public Transportation and School Buses
Ensures safety for passengers and drivers with multi-angle monitoring. The ADAS system helps prevent collisions, and real-time location sharing allows operators to track vehicles and respond promptly to emergencies.
4.Corporate Vehicle Management
Suitable for companies with employee-driven vehicles. The dashcam promotes responsible driving through behavior monitoring, while GPS tracking aids in route planning and prevents unauthorized vehicle use.
5.Insurance and Accident Documentation
Provides reliable high-definition video evidence for insurance claims. The G-Sensor automatically saves footage of collisions, and real-time alerts enable quick reporting and assistance in accident scenarios.
FAQ
Q1. Can you do hardware/software customization?
A: Yes, we offer not only OEM but ODM services, include online tracking platform.Our professional technician would also provide more after-sales service 7/24 hours
Q2. Does this GPS tracker need a sim card?
A:Yes.
Q3. How long will I get the goods after the payment?
A: This depends on quantity and logistics system. In normal condition, the goods will arrive at your address in 7-30 days. More details, please contact our sales for confirming.
Q4. Do you accept rebrand &logo custom?
A: Yes, rebrand on product case or product itself is available.
Q5. How are your quality control?
A: All products have been 100% strictly quality checked in the house before packing.
