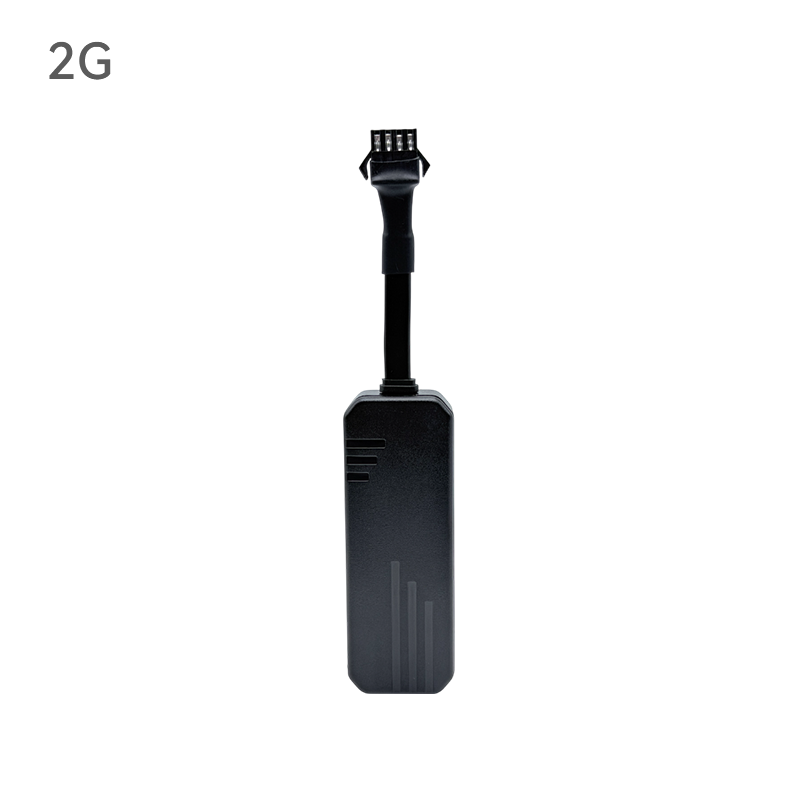

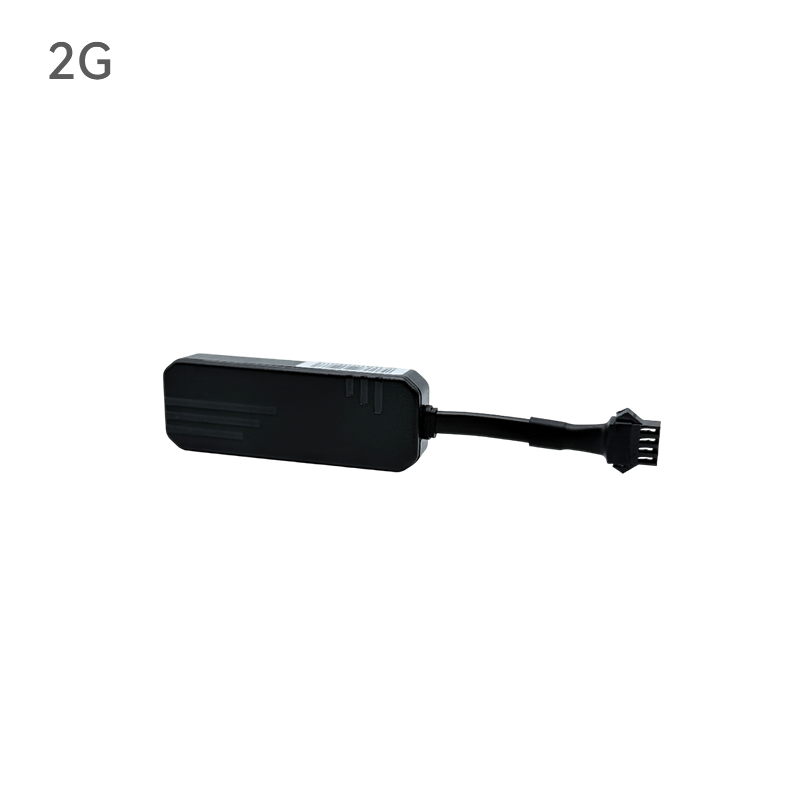

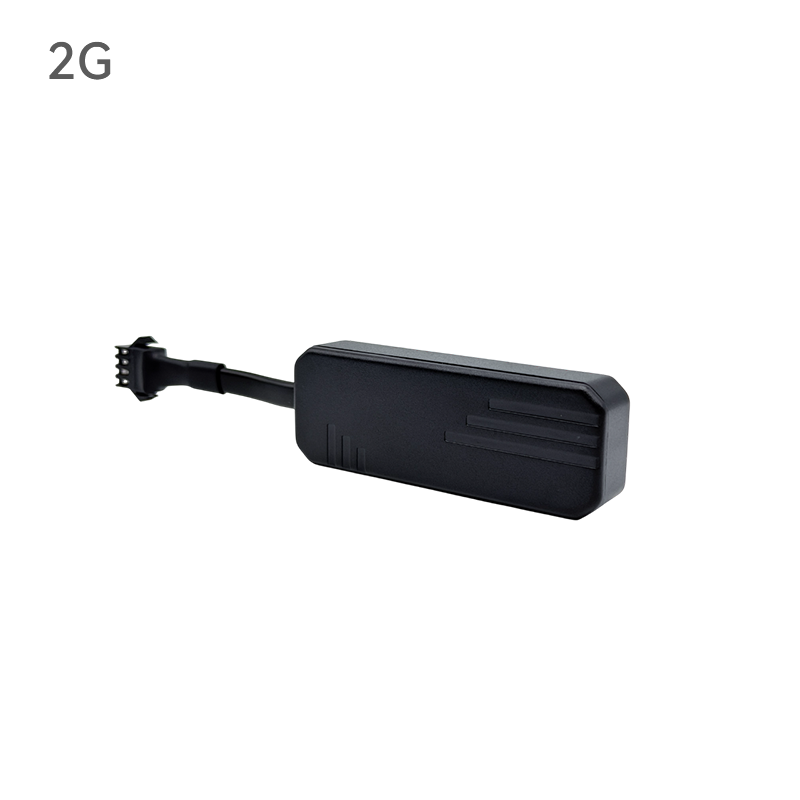

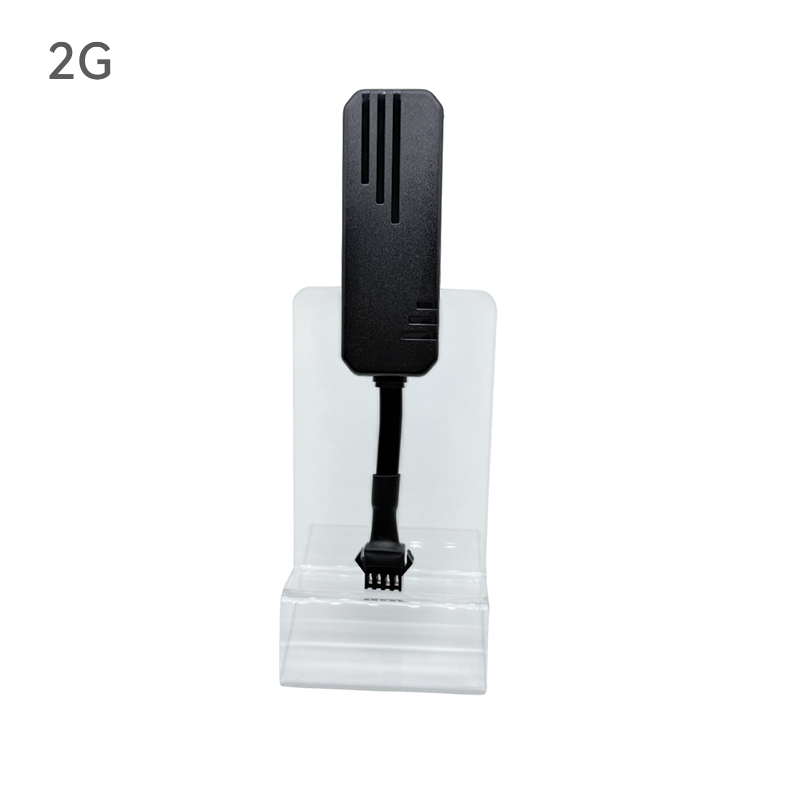

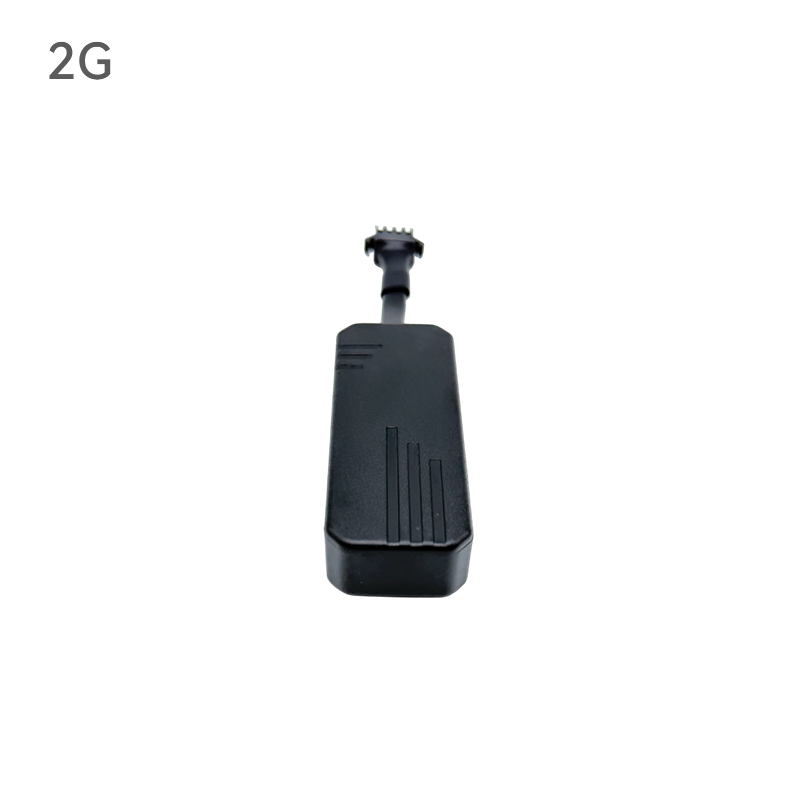

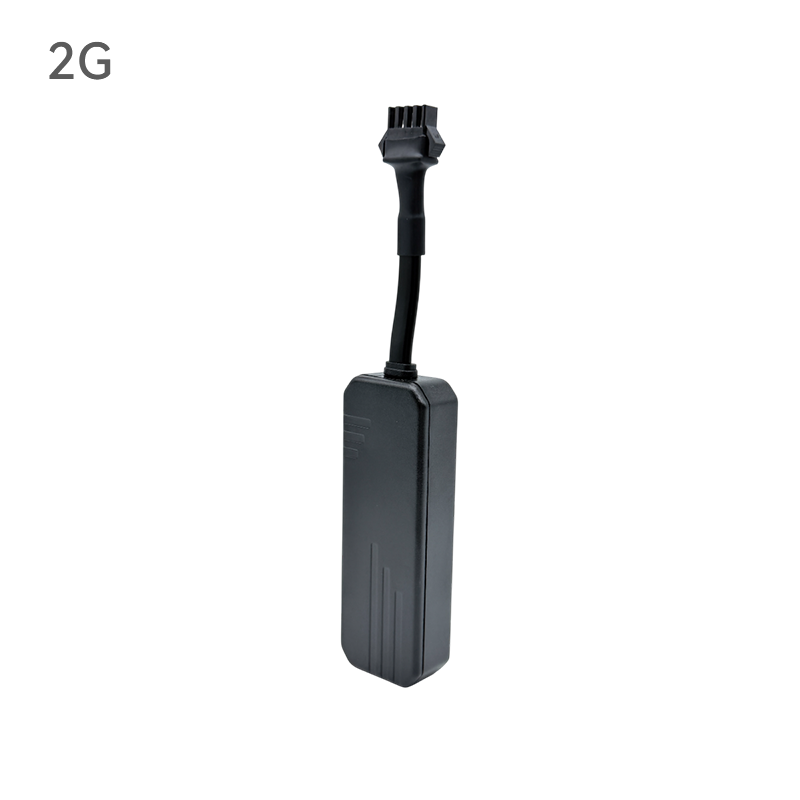

The 2G GPS vehicle tracking locator is a compact and dependable device offering real-time location tracking. Through a dedicated app, users can instantly monitor their vehicle or asset's precise location and enjoy the key feature of remote engine start/stop for added convenience and security. Built to be durable, it provides reliable global coverage. The product also supports customization, making it a versatile solution for both personal and commercial applications.
Product Advantage
This advanced vehicle tracking device provides reliable real-time monitoring with <10m accuracy using combined GPS+Beidou+LBS positioning. Fast hot start under 2 seconds ensures immediate tracking response, while ultra-low 3mA standby current protects your vehicle's battery. The rugged design withstands extreme temperatures from -20°C to 60°C.
As a versatile motorcycle bike vehicle car gps tracker, it features direct 9-90V wiring installation with remote oil/electricity cutoff capability. The professional wired car gps tracker configuration enables continuous operation with 150mAh backup battery supporting 30+ hours during power disruptions. Multiple alert systems include vibration detection and power-cut notifications.
Accessible as a car gps tracker for both android and IOS, the system delivers comprehensive tracking data through user-friendly mobile applications. Real-time alerts for speeding, vibration, and power interruptions provide enhanced security, while remote engine control adds an extra protection layer for vehicle management and theft prevention.
Engineered as a high-performance real time car gps tracker, it combines precision tracking with smart functionality including ACC detection and geofencing capabilities, making it ideal for fleet management, personal vehicles, and commercial applications requiring reliable location monitoring
Technical Parameters
| Model T1-6C | ||
GSM specifications | ||
GSM chip | MT2503 | |
GSM channel | 850/900/1800/1900MH | |
GPRS class | Class 12,TCP/IP | |
GPS specifications | ||
GPS chipset | MT2503 | |
Positioning mode | GPS+BD+LBS | |
Frequency | L1,1575.42Mhz C/A code | |
Positioning accuracy | <10 meters | |
Positioning time | Avg.hot start<2s | |
Working parameters | ||
Operating voltage range | 9-90V | |
Working current | 22mA(12V)/12mA(24V) | |
Quiescent current | 3mA | |
Battery | 150mAh | |
Continuous working time | 4h | |
Continuous stationary battery life | 30h | |
Working temperature | -20℃~+60℃ | |
Working humidity | -40℃~+85℃ | |
Dimensions | L74.2mm*W25.7mm*H14.5mm | |
Weight | 30g | |
Features | ||
ACC detection | √ | |
Oil and electricity control | √ | |
Remote monitoring(phone) | / | |
Remote upgrade | √ | |
Alarm function | ||
Vibration alarm | √ | |
Power-off alarm | √ | |
SOS alarm | / | |
Speeding alarm | √ | |
Accessory Functions | ||
Product Uses
1.Fleet Management & Logistics：Ideal for monitoring delivery vehicles and optimizing routes in real-time. Enables managers to track location, manage schedules, and improve operational efficiency with geofencing and driving reports.
2.Personal Vehicle Security: Protect private cars from theft with instant vibration alerts, remote engine cutoff, and real-time tracking. Receive notifications for unauthorized movement or tow attempts.
3.Motorcycle & Asset Tracking: Compact design suits motorcycles, bikes, and valuable equipment. Track location and movement history, with vibration alerts for anti-theft monitoring.
4.Rental & Leased Vehicle Monitoring: Manage rental fleets by tracking usage, preventing unauthorized journeys, and ensuring timely returns. Alerts for speeding or off-route travel enhance control.
Product Operate Guide
1. Prepare SIM Card & Vehicle
Use a standard, micro, or nano SIM card with active data service.
Locate the vehicle’s battery terminals and the ACC ignition wire.
2. Install SIM Card
Insert the SIM card into the device slot with the metal contacts facing down.
Ensure it is securely seated before closing the cover.
3. Activate the Tracker
Send the activation command via SMS to the SIM card number inserted in the tracker.
Wait for the tracker to respond and show as "online" on the monitoring platform.
4. Connect Wires
Red wire → Connect to the battery positive terminal
Black wire → Connect to the battery negative terminal.
Orange wire → Connect to the ACC ignition line.
Yellow wire → Connect for remote fuel cut-off (optional function).
5. Mount the Device
Recommended locations:
Cars: Under the dashboard or behind a trim panel.
Motorcycles: Under the seat or near the speedometer.
6. Verify Installation
Check LED indicators:
Green light: Indicates network status (slow flash = normal).
Blue light: Indicates GPS status (steady = fixed position).
FAQ
Q1. Can you do hardware/software customization?
A: Yes, we offer not only OEM but ODM services, include online tracking platform.Our professional technician would also provide more after-sales service 7/24 hours
Q2. Does this GPS tracker need a sim card?
A:Yes.
Q3. How long will I get the goods after the payment?
A: This depends on quantity and logistics system. In normal condition, the goods will arrive at your address in 7-30 days. More details, please contact our sales for confirming.
Q4. Do you accept rebrand &logo custom?
A: Yes, rebrand on product case or product itself is available.
Q5. How are your quality control?
A: All products have been 100% strictly quality checked in the house before packing.
